Home > Product > Patient Monitor > Patient Monitor > MEK-YK8000C Portable ICU Monitor 12.1-inch Color LCD Touch Screen Patient Monitor

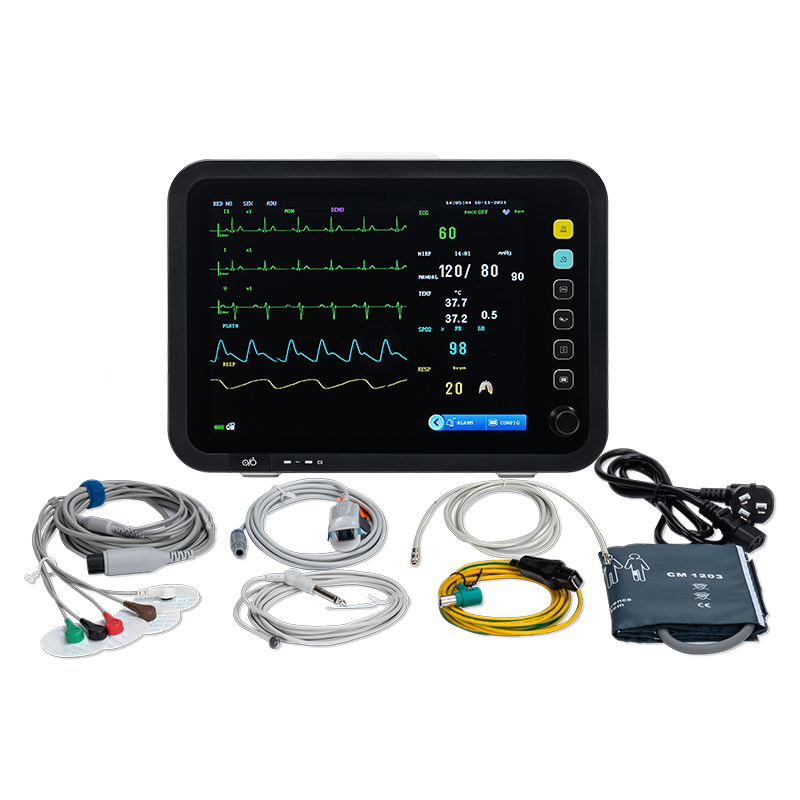

MEK-YK8000C Portable ICU Monitor 12.1-inch Color LCD Touch Screen Patient Monitor

Inquire Now Next Product

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Product performance:

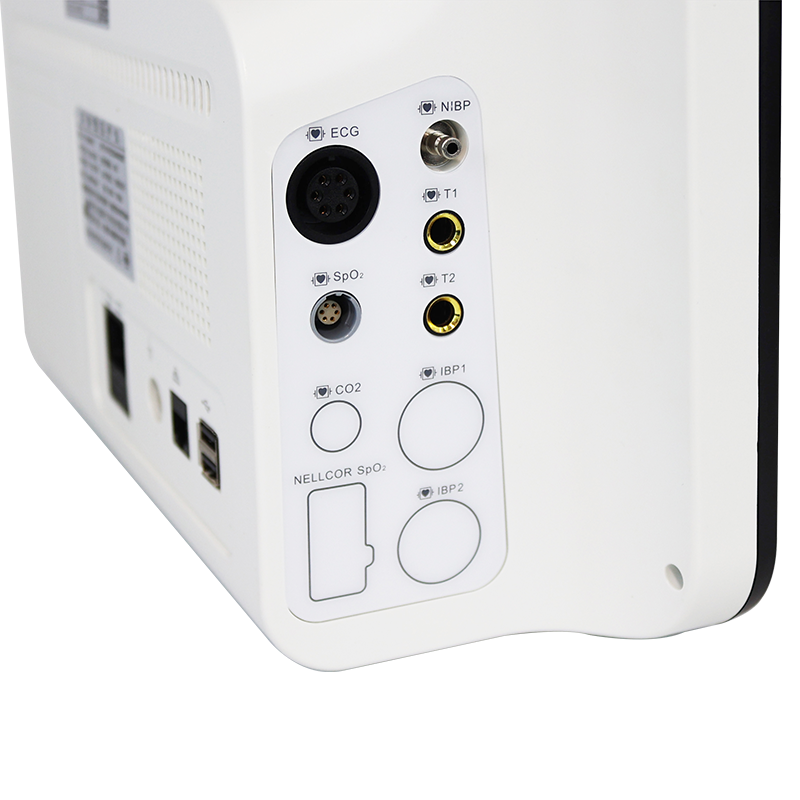

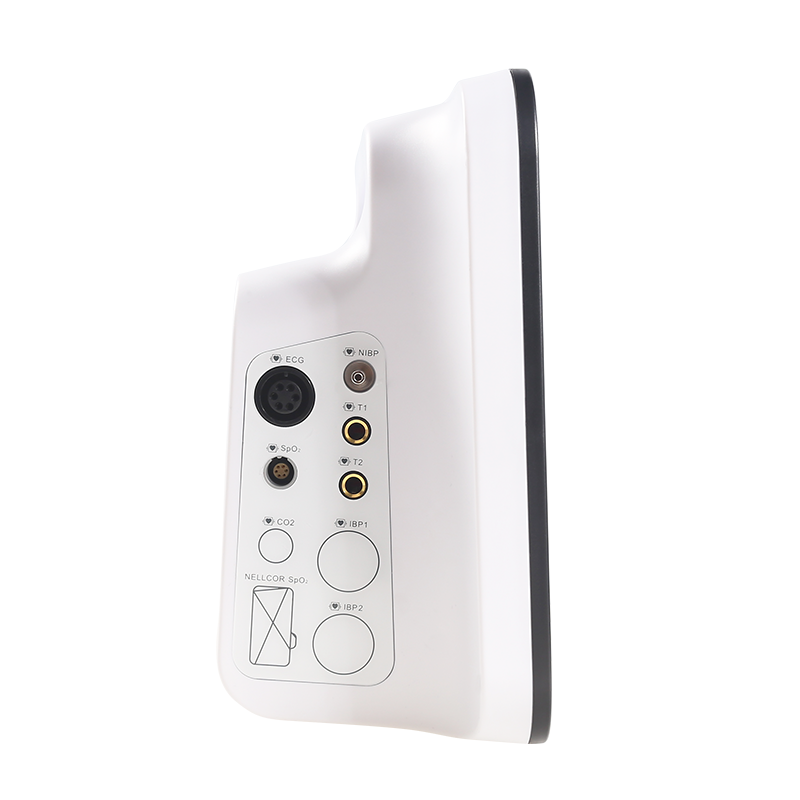

1. 8 parameters (ECG, RESP, SPO2, NIBP, PR, TEMP, IBP, ETCO2) + fully independent modules (independent ECG + Nellcor + Shangde blood pressure + dual IBP);

2. Anti-fibrillation, anti-high frequency electro-surgery interference, support for diagnosis, monitoring, and surgery three monitoring modes, support for wired or wireless central monitoring system;

3. Data automatic storage function: support for historical monitoring data query of nearly 96 hours;

4. Built-in high capacity lithium battery (4 hours), for emergency power failure or patient transfer;

5. 3-level audio-visual alarm function;

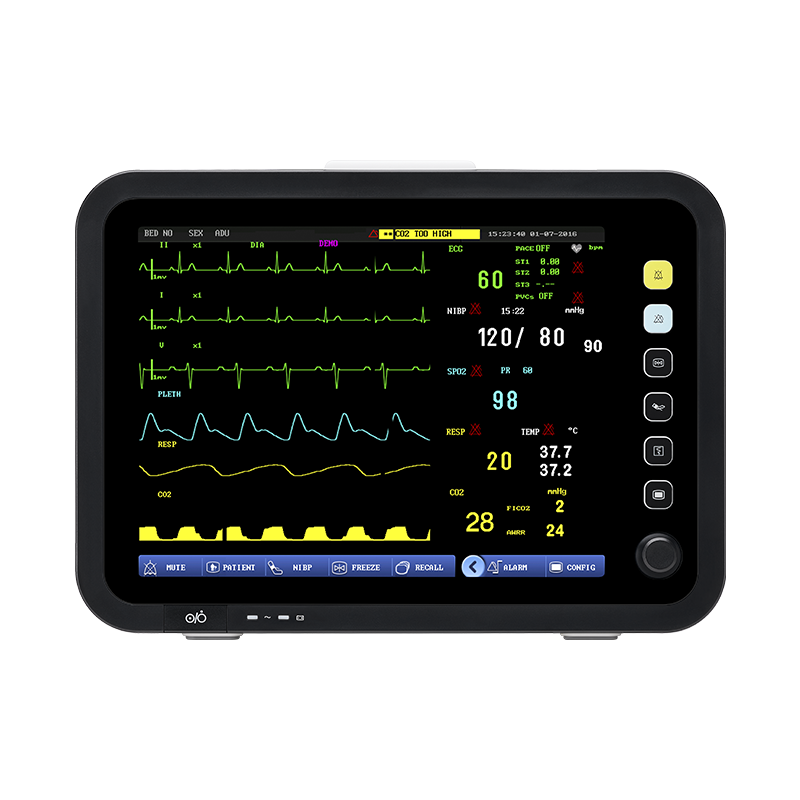

6. 12.1-inch color LCD touch screen supports multiple language modes;

7. Optional printing function, suitable for operating room, ward and other scenarios.

Optional configuration:

Recorder, mobile cart, wall-mounted installation, touch screen, thermal printer.

Detailed introduction

Technical specifications
Electrocardiogram		Non-invasive blood pressure
input	3/5 line ECG cable	Test method	Scope
Leading section	I II III aVR, aVL, aVF, V	Philosophy	Adults, children and newborns
Gain selection	* 0.25, * 0.5, * 1, * 2, automatic	Measurement type	Systolic and diastolic average
Scanning speed	6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s	Measurement parameters	Automatic, continuous measurement
Heart rate range	15-30bpm	Handbook of Measurement Methods	mmHg or ± 2%
Calibration	± 1mv
Accuracy	± 1bpm or ± 1% (whichever is greater data)
SPO2		2-Temperature ( rectal and surface )
Display type	Waveform, data	Number of channels	2 channels
Measurement range	0-100%	Measurement range	0-50 ℃
Accuracy	± 2% (70%-100%);	Accuracy	± 0.1 ℃
Pulse rate range	20-300bpm	Display	T1, T2, T
Accuracy	± 1bpm or ± 2% (whichever is greater)	Unit	°C/°F selection
Resolution	1bpm	Refresh cycle	1s-2s
Breathing (resistance and nasal passages)
Measurement type	0-150 rpm
Accuracy	± 1bm or ± 5%, whichever is greater
Resolution	1 revolution/minute

Certifications

Our factory

Main markets

FAQ

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Shipping way:

By express, by air, or by Sea

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Is it certificated?

Yes, it is with CE certificated.

Customer reviews
