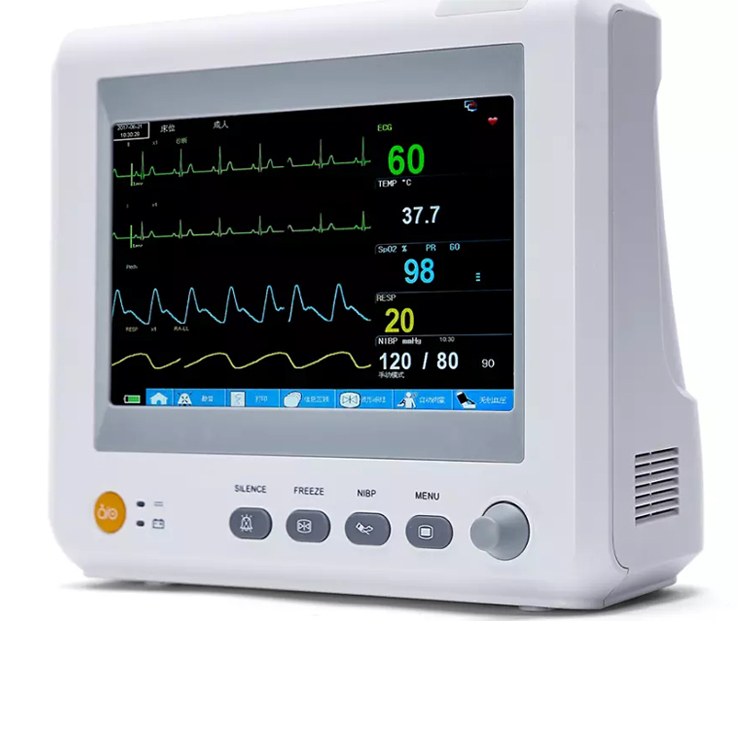

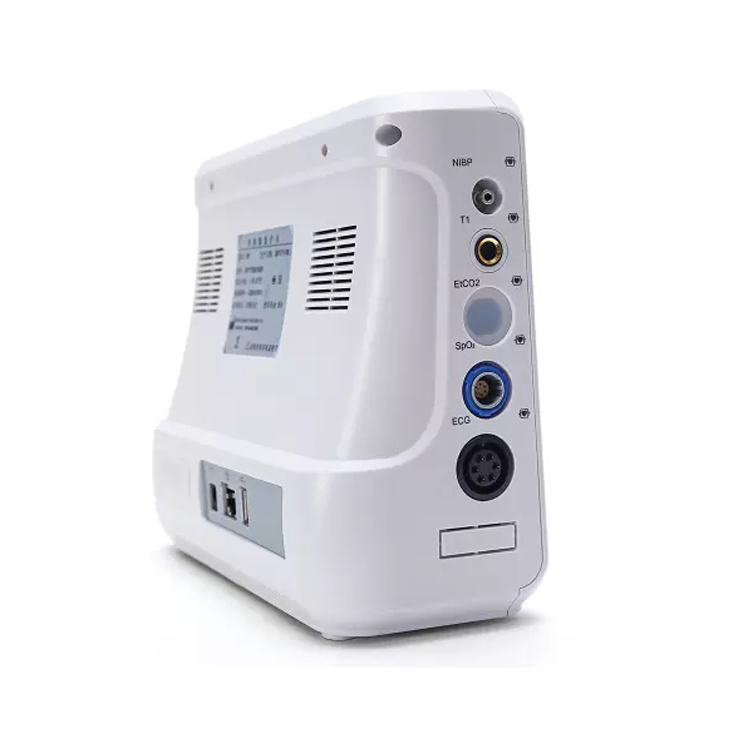

MEK-M7 Digital Monitoring Equipment Medical Multi-parameter Monitor

Inquire Now Next Product

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Specifications

7" inch high-resolution color screen
ECG, NIBP, SpO2, RESP ,TEMP,PR
Capture dynamic waveforms

The display is 8 inch high resolution color TFT.

It is equipped with 6 parameters including ECG, NIBP, SpO2, RESP,TEMP,PR. These four parameters can be flexible.

You can choose different combinations as you need.

This monitor is built-in rechargeable lithium battery.

The working capacity is 5 hours.

Detailed introduction

ECG	lead mode;I,II,III,AVR,AVL,AVF,V Gain:X0.25,X0.5,X1,X2 Heart Rate:15-300BPM(Adult) 15-350BPM(Neonatal) Resolution:1 BPM Accuracy:+-1% ST measurement Range:-2.0-+2.0mV Accuracy:+-10% Pacemaker:Yes Sweep Speed:12.5 mm/s,25mm/s,50mm/s *Bandwidth:Diagnostic:0.05--130Hz Monitor: 0.5--40Hz Surgery: 1-20Hz
Spo2	Measure Range:0-100% Resolution:1% Accuracy:2%(70-100%) Pulse Rate:20-250BPM Resolution:1BPM Accuracy:+-3BPM
NIBP	Work mode:Manual,Automatic,Continuous Unit:mmHg,Kpa Measure Range: Adult:SYS: 40-280mmHg DIA: 10-225mmHg MEAN:20-240mmHgPediatric:SYS:40-220mmHg DIA: 10-160mmHg MEAN:20-170mmHgNeonatal:SYS:40-135mmHg DIA:10-100mmHgMEAN:20-110mmHgResolution:1mmHg *Accuracy:+-5mmHg
RESP	Measure Range:0-150BrPM Resolution:1BrPM *Accuracy:+-2%

Certifications

Our factory

Main markets

FAQ

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: Shipping way:

By express, by air, or by Sea

Q: Is it certificated?

Yes, it is with CE certificated.

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.
