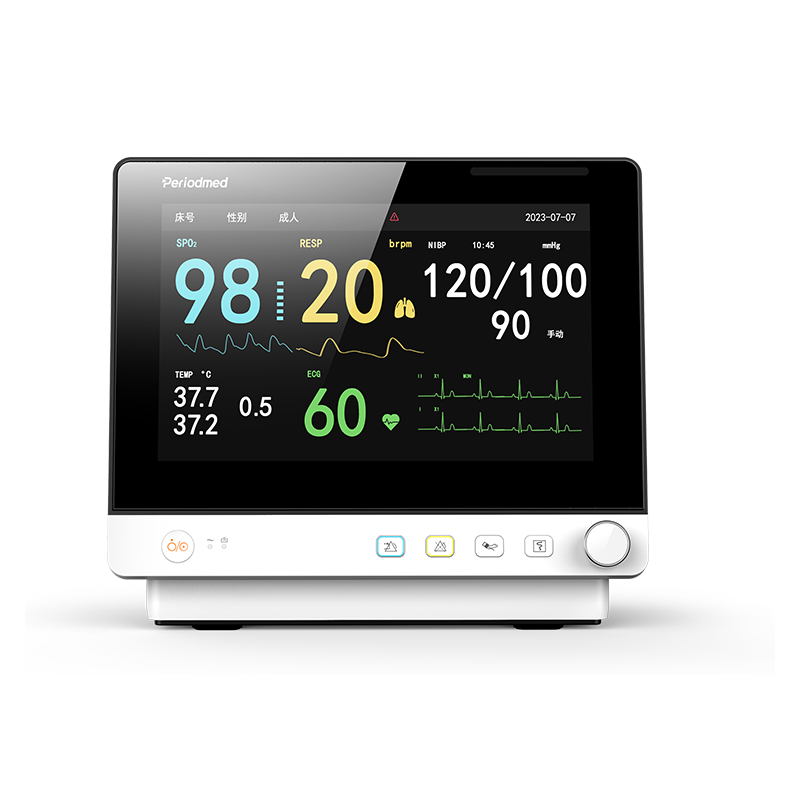

LP15A 15 Inch LCD Screen Patient Monitor

Inquire Now

Introduction Detailed introduction Certifications Our factory Main Markets FAQ Customer Reviews

INTRODUCTION

Detailed introduction

Data table
Quality standards and classification	• CE, ISO13485 • SFDA:ii b level • Degree of electric shock protection: Class I equipment (Internal power supply) Temperature/SpO 2 /NIBP: BF • ECG/Resp: CF	Electrocardiogram	5 Clues: RA,LA,LL,RL,V • Lead Mode: Ⅰ , Ⅱ , Ⅲ ,aVR,aVL,aVF,V Increase: × 250, × 500, × 1000, × 2000 • Sensitivity: > 200 uV (Peak-to-Peak Value) • Input Impedance: > 5 (Megohm) Bandwidth: Surgical 1 ~ 20 Hertz • Monitor 0.5 ~ 40Hz • Diagnostic 0.05 ~ 130Hz • CMRR 100dB • Polarization Voltage: ± 300mV • Baseline Recovery Time: Within Defibrillation <3 seconds • Signal Range: 8 mV (Peak-to-Peak Value) • Calibration Signal: 1mV, Accuracy ± 5% Heart Rate Range: 15-380bmp • Heart Rate Accuracy: +/-1%
Scope of application	• Adult/Pediatric/Neonatal/Medicine /Surgery/Operating Room/ICU/CCU
Display	15-inch true color film crystal screen Resolution: 1024x768 • One alarm indicator (yellow/red) • One work indicator (green) One-time battery charging Status indicator (green) ·Three modes comply Alarm status
Environment	Operating environment: Temperature: 0 ~ 40 ℃ • Humidity: ≤ 85% • Altitude: -500 ~ 4600m Transportation and storageenvironment: Temperature: -20 ~ 60 ℃ • Humidity: ≤ 93% • Altitude: -500 ~ 13100m	RESP	• Method: ra-ll Impedance • Resp Impedance Range: 0.3 ~ 3 • Basic Impedance Range: 200 ~ 4000 • Bandwidth: 0.1 ~ 2.5Hz • Resp Rate: Adult 0 ~ 120BrPM • Neonate/Pediatric 0 ~ 150BrPM Resolution: 1BrPM Accuracy: ± 2 BrPM Apnea Alarm: 10 ~ 40 seconds
Power requirements	• AC: 100 ~ 240V, 50Hz/60Hz DC: Built-in rechargeable battery • Battery: 5200mAh 11.1v lithium battery 4h operation after full charge (one) 5 minutes operation after low battery warning	Non-invasive blood pressure	• Method: Pulse wave doppler Working mode: Manual/Auto/Stat • Measurement interval in Auto mode: 1,2; 3,4; 5,10,15,30,60,90,120,180, 240,480 minutes Measurement time in Stat mode: 5 minutes Public relations range: 30 ~ 250bpm Measurement and alarm range: Adult SYS 40 ~ 270mmHg Diameter 10 ~ 215mmHg Average 20 ~ 235mmHg Pediatrics SYS 40 ~ 200mmHg Diameter 10 ~ 150mmHg Average 20 ~ 165mmHg Newborn SYS 40 ~ 135mmHg Diameter 10 ~ 100mmHg Average 20 ~ 110mmHg • Gauge range: 0 ~ 300mmHg Accuracy: ± 3mmHg Pressure accuracy: Maximum mean error: ± 5mmHg Maximum standard deviation: ± 8mmHg Overpressure protection: Adult 300mmHg Pediatrics 240mmHg Newborn 150mmHg
Size and weight	Equipment: 300mm × 286mm × 155mm (about); 4.5kg (about) Packing: 350mm × 380mm × 300mm (about); 6.5kg (about)	Non-invasive blood pressure

Certifications

Our factory

Main markets

FAQ

Q: How does your factory do regarding quality control?

We have standard QC system to control the quality.

Q: How can get the shipping cost?

You tell us your destination port or delivery address, we check the Sea Freight or Air Freight for you based on your requirement.

Q: Is it certificated?

Yes, it is with CE certificated.

Q: How long time warranty do you have?

We offer two-year warranty for the main unit and and accessories. And we have the professional service engineer to respond your service request within 24h.

Q: Shipping way:

By express, by air, or by Sea

Q: Do you test all your goods before delivery?

Yes, we have 100% test before delivery.

Q: Can you do OEM?

Yes, we can do OEM. We have complete facilities and more than 20 years experiences ready for your service.

Q: Is it all right to make customers’own brand name?

That’s all right to make your own brand name.

Q: Whats your payment terms?

We accept payment by T/T, Western Union, Paypal, L/C, Trade Assurance etc.
